Metering diaphragm

Diaphragm metering pumps are probably one of the most common used types of pumps for dosing of all kinds of chemicals.
The pumps cover a wide capacity range going from 0 to 2650 l / hour, and is available in versions that can provide a pressure up to 200 bar.
Special pumps with ATEX certification for use in hazardous areas or for transporting flammable liquids.

	Title	Specifications
	Invikta series	Voltage: 230 VAC Free flow: 2 - 5 l/hour Max. pressure: 2 - 7 bar
	Kompact 200 series	Voltage: 230 VAC Free flow: 5 l/hour @ 8 bar Max. pressure: 10 bar
	Tekna EVO analog series	Voltage: 230 VAC Free flow: 2 - 55 l/time Max. pressure: 20 - 0 bar
	Tekna EVO digital series	Voltage: 230 VAC Free flow: 2 - 55 l/hour Max. pressure: 20 - 0 bar

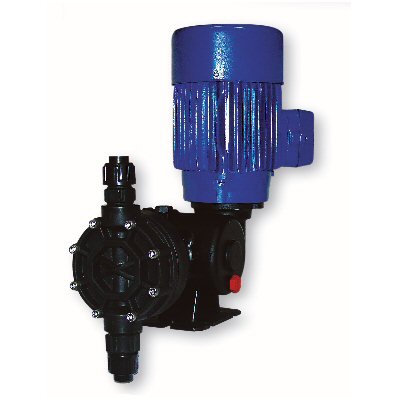

	Metering pumps MS series	Voltage: 230/415 V AC Free flow: 5,5 - 2000 l/hour Max. pressure: 4 - 16 bar
	Metering pump NEXA series	Voltage: 230/415 V AC Free flow: 0,06 - 2565 l/hour Max. pressure: 200 bar
